    1 to 6OZ 2 Double Sided Rigid Flexible PCB Flex Circuit Board

    Ask Lasest Price
    Brand Name : FASTPCBA
    Model Number : Multilayer PCBs Fabrication
    Certification : ISO9001 / IATF16949 / ISO13485
    Price : 1-30
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 100000
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    1 to 6OZ 2 Double Sided Rigid Flexible PCB Flex Circuit Board

    Flexible PCBs Soldering Fabrication Service Printed Circuit Board SMT PCBA Service

    Benefits of Rigid-Flex PCBs

    • Space requirements can be minimized by applying 3D

    • By removing the need for connectors and cables between the individual rigid parts, the board size and overall system weight can be reduced.

    • By maximizing space, there is often a lower count in parts.

    • Fewer solder joints assure higher connection reliability.

    • Handling during assembly is easier in comparison with flexible boards.

    • Simplified PCB assembly processes.

    • Integrated ZIF contacts provide simple modular interfaces to the system environment.

    • Test conditions are simplified. A complete test before installation becomes possible.

    • Logistical and assembly costs are significantly reduced with Rigid-Flex boards.

    • It is possible to increase the complexity of mechanical designs, which also improves the degree of freedom for optimized housing solutions.


    Production Capability


    ItemCapability
    Base MaterialFR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
    Layers1-48
    Finised inner/outer copper thickness1-6OZ
    Finished board thickness0.2-7.0mm
    Min hole size

    Mechanical hole: 0.15mm

    Laser hole: 0.1mm

    Controlled Impedance+/-5%
    Plugging vias capability0.2-0.8mm
    Outline profileRout/ V-cut/ Bridge/ Stamp hole
    Surface treatmentHASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…


    Our services


    A One-stop EMS Contract Manufacturer
    JINGBANG with 400 employees, and a 25,000-square-meter production and office area. We offer one-stop services with the use of our 20 years of experience in the global EMS market.

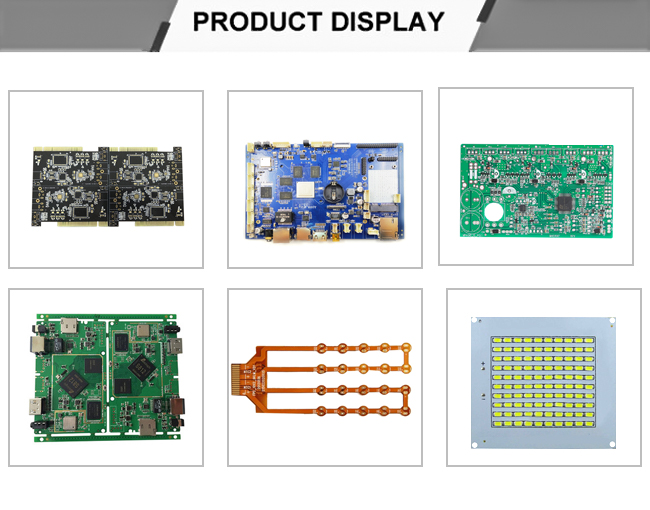

    Production Show


    We can produce 1-48 Layer PCBs, material FR4, Aluminum, Rogers, Teflon, Polyimide, ect.

    With 6 SMT lines, the normal assembly speed is 10000~12000 soldering pins per hour.

    JINGBANG has invested in the best equipment, environment and staff training.

    We have a production capability for standard and HDI , Rigid, RF and high frequency PCBs, together with through hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.
