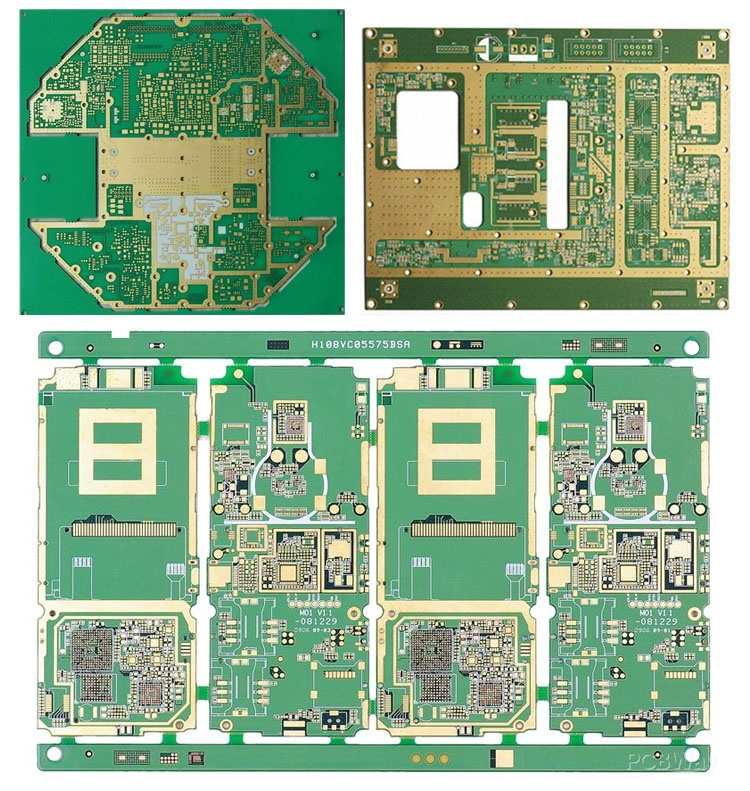

Multilayer HF PCBs High Speed High Frequency Circuit Boards
What is High Frequency (HF) PCB?
Electronic devices with high frequency are the developing tendency
nowadays, especially in the wireless networks. Satellite
communication growing rapidly, information products move towards
high speed and high frequency. Thus developing new products always
need to use high frequency substrate, satellite system, mobile
telephone receiving base station and so on, these communication
products must use high frequency PCB.
FASTPCBA's HF PCB Capabilities
FASTPCBA has deep engineering capabilities and experience with
control depth drilling, control depth milling, and back drilling,
unlike some of our competitors. This means we have the technology,
the experience, and the knowledge to help you design and build the
right high frequency PCB from the start.
We differentiate ourselves by being able to take on all complex
jobs — all the way from layout through assembly — and we do this
under one roof with state-of-the-art technology and an extensive
engineering team. This end-to-end expertise allows us to excel at
the entire process and be the best PCB provider in the country.
Check FASTPCBA High Frequency PCB Manufacturing Capabilities in the
Following Table:
| Feature | Capability |
| Material | RO4003C, RO4350B, Ro3003, Ro3010, RT5880 |
| Min. Track/Spacing | 2mil |
| Min. Hole Size | 0.15mm |
| Finished Cooper | 1-2oz |
| Board Thickness | 0.2-3.2mm |
| Surface Finishing | Immersion gold, OSP, Hard Gold,Immersion SIlver, Enepig |
| Finsih Cooper | 0.5-13oz |
| Solder Mask | Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte
green |
| Silkscreen | White, Black |
| Via Process | Tenting Vias,Plugged Vias,Vias not covered |
| Testing | Fly Probe Testing (Free) and A.O.I. testing |
Applications for HF PCBs
High frequency rigid and flex PCBs are used in many products and
across many industries, including:
* Cell phone
* Telecommunications
* Military and aerospace
* RF microwave
* Automotive (mainly LIDAR, which is a mini radar that communicates a
vehicle’s surroundings)
* High-density interconnect and high-speed design applications
FAQ:
1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic
injection & metal,final assembly, testing and other value-added
service.
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size,
surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and
promising tokeep customers data in high confidential level.
4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, Military,
Aerospace.
5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.
6, Are you factory?
Our factory is located in 1st Building, No. 18-1, Yuquan East Road,
Yulv Village, Gongming Street, Guangming New District shenzhen,
china.
We are waiting for your response to move forward next step and
offer you wanted information, product and service.
Please kindly do me a favor: Fill out the form below, tell me your
needs, it is beneficial for both of us.
